Router Jigs for Circles and Dadoes

Creating a Double Duty Trim Router JigTrim routers are great for small operations. I wanted to make some precisely fitting holes for flower pots, but the circle cutting jig for my full-size router was too big. So I decided to make a small version for my trim router. Additionally, I wasn’t thrilled about the fence that came with my trim router, and wanted something that worked better.

become a premium member banner

Become a Premium Member

Creating a Double Duty Trim Router JigHow about a router jig that had both a circle cutter and an adjustable fence for dadoes, grooves and flutings? This is what I came up with, and how to make it.

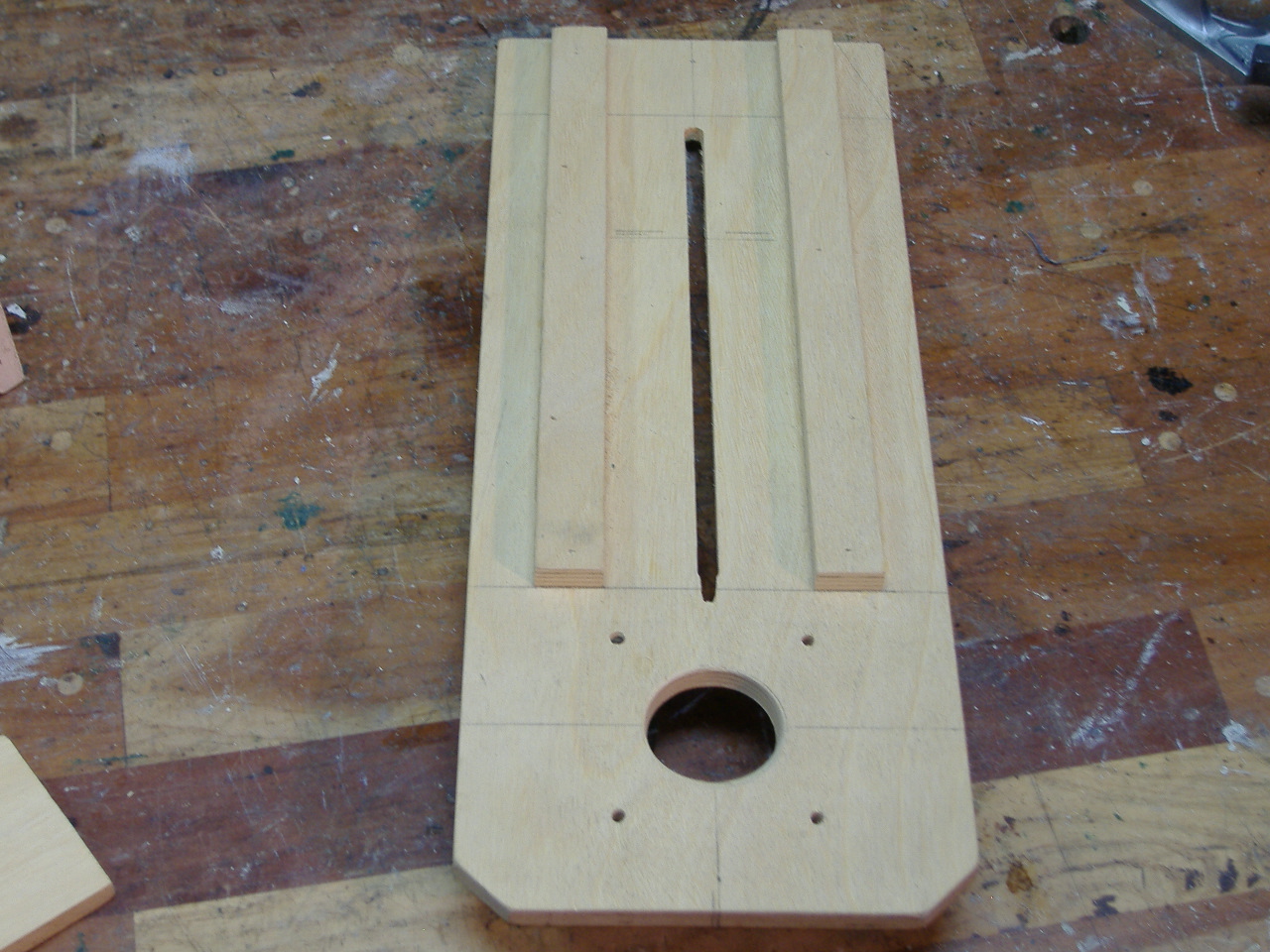

Creating a Double Duty Trim Router JigStart with a piece of good 1/2″ plywood. Make the base 7″ x 18″ with an over-size 1/4″ slot cut down the center to accept a T-bolt. Add two guides 1″ X 12-1/2″, spaced 3″ apart.

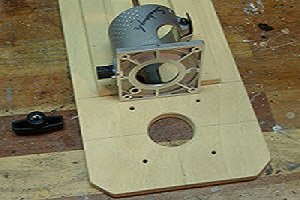

Creating a Double Duty Trim Router JigMount the router base centered side to side and 3″ from the front edge of the jig base and cut a hole for the bits to go through.

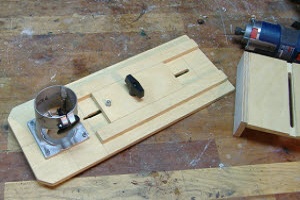

Creating a Double Duty Trim Router JigThe circle cutter pivot pin is a 1/8″ x 1-1/4″ machine bolt, double-nutted with a star washer mounted in a 3″ x 7″ block. I positioned the bolt 1″ back from the front edge.

Creating a Double Duty Trim Router JigThe pivot bolt is held in place with a counter sunk nut on the bottom. You also need to drill a 1/4″ hole 3″ back from the front edge to receive a 1/4″ T-bolt.

Creating a Double Duty Trim Router JigThe under side of the jig base is slotted to receive a 1/4″ x 1-1/2″ T bolt. Note that the bolts for the router base also must be counter sunk.

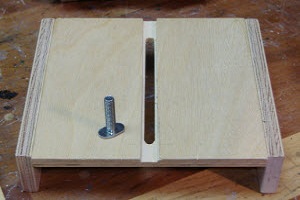

Creating a Double Duty Trim Router JigThe sliding fence is 7″ x 7″ and the sides are 1″ x 7″ so the fence will wrap around the jig base. Also note the oversize slot to receive the T bolt.

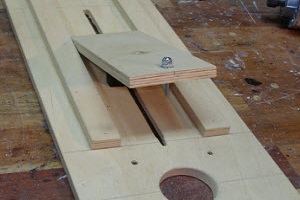

Creating a Double Duty Trim Router JigHere is a top view of the circle cutter pivot pin block installed on the jig base.

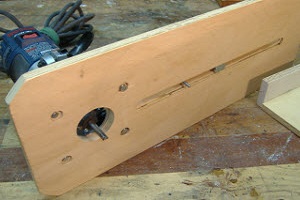

Creating a Double Duty Trim Router JigThe view from the under side shows how easy it is to set a radius to cut a circle.

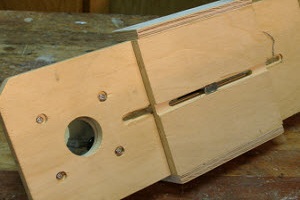

Creating a Double Duty Trim Router JigThis shows the under side of the jig with the fence installed instead of the pivot pin.

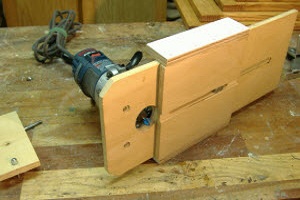

Creating a Double Duty Trim Router JigSee how easy it is to set the placement of the fence for dadoes, grooves or flutes.

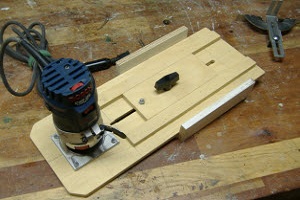

Creating a Double Duty Trim Router JigThe fence and the pivot block can both be mounted on the base for storage. A great way to make sure all the parts are there when you need them.

Photos By Author
